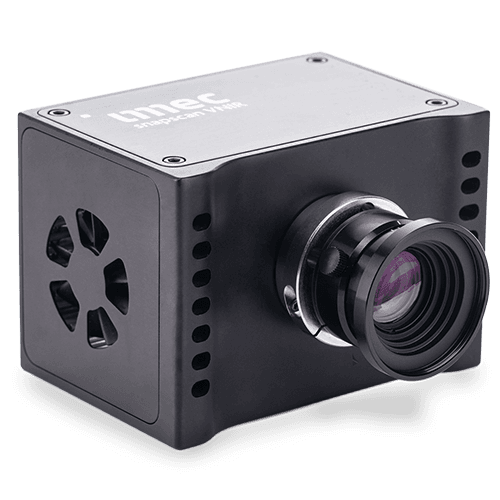

imec SNAPSCAN NIR

The SNAPSCAN family provides a user-friendly system to both advanced and new R&D users. Just point and click to create a hyperspectral image. Without making any concessions on the quality of your data.

Request your demo

spectral range

600 – 975nm

spectral resolution

100 bands

spatial resolution

up to 5MP

cube acquisition time

2 to 20 s

lens compatibility

C-mount optics

Acquire images with high spatial and spectral resolutions in seconds.

Get instant insights thanks to imec’s included software for acquisition, pre-processing and visualization.

Enjoy minimal preparation time thanks to hyperspectral imaging without translating stage.

This complete evaluation kit includes, besides the camera, all required accessories, lens recommendations, an optional evaluation setup, acquisition and analysis software, manuals and remote support – from basic help to tailored application support.

Applications

digital microscopy for pathology
cytogenetics & histology
wound monitoring & diagnostics
mineral & material characterization
precision agriculture
food inspection
art & heritage analysis
general application research for hyperspectral imaging in the lab

Imec evaluation kit specs

spatial resolution

up to 3600 x 2048 px

spectral resolution

100 bands

spectral range

600 – 975nm

FWHM (full width at half maximum)

~10 – 15nm (collimated)

acquisition speed

2 to 20 seconds, depending on acquisition parameters, lighting and object

software

HSI Snapscan software for raw image acquisition, data pre-processing, hypercube visualization and classification. C and Python API for acquisition and data pre-processing in custom software

software scanning mode
